技術參數說明

Technical parameter

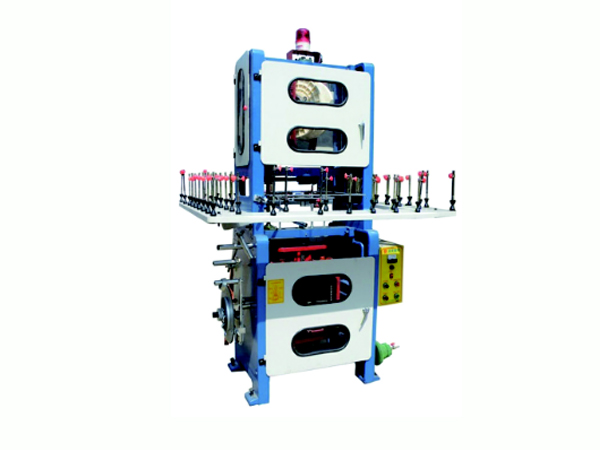

成纜機，機器主要性能

Main performance

1、用途：銅線、隔離線、纏繞用

1.Application:copper wire,shielding wire,to wind up.

2、適用芯線：0.6-0.8mm

2.Suitable for the core wire:0.6-0.8mm

3、適用銅線：0.06-0.24mm

3.Suitable for the copper wire:0.06-0.24mm

4、纏繞絞距：7.5-80mm無極調節，觸摸屏操作顯示，PLC控制

4.Winding lay length:7.5-80mm infinite regulation, touch screen operation showed with the PLC control

5、動力：主機7.5kw+牽引4kw，變頻調速

5.Power:Main machine7.5kw+traction 4kw,frequency control.

6、回轉速度：650RPM

6.Rotate speed:650RPM

7、電源供應：三相380V，50HZ

7.Power supply:3 phase380V,50HZ

機械構成：

Machine composition:

1、臥式退扭部分

1.Horizontal twisted back part

A：適用線盤：

A:Suitable for the wire bobbin size:

（1）.芯線盤：Φ400-Φ630

(1).Core wire bobbin:Φ400-Φ630

（2）.銅線線盤：（配合現品）

（2）.Copper wire bobbin:(Cooperate with existing product)

B：放線張力：磁粉離合器無極調節

B:Pay off tension:magnetic powder clutch stepless adjustment

C：銅線頭：依客戶定

C:Copper wire head:according to the customer’s requirement.

2.收線部分

2.Take up part

A：適用線盤：Φ630 x Φ56 x 400mm（內寬）

A:Suitable for the wire bobbin:Φ630 x Φ56 x 400mm（inner width）

B:收線張力：氣動離合器無級調節

B:Take up tension:Pneumatic clutch stepless adjustment

C:排線方式：（雙向）往復絲桿排線

C:Method of traverse:(double direction)screw rod reciprocating traverse

3.電器控制部分

3.Electrical equipment control part

A:過載保護

A:Overload protect

B:馬達慢啟動

B:Motor start slowly

C：斷線停機裝置

C:Wire broken it stop

D：斷線報警裝置

D:Wire broken it alarm
