ZMHΦ630mm-Φ1250mm 高速旋框單絞機
ZMHΦ630mm-Φ1250mm High speed single twisting (cabling) machine
用途：
繞包機，計算機電纜，橡套電纜，KVVRP,KVVR,RVV,KVV等控制電纜的絞合和包帶，若與退扭機聯動使用適合各種數據電纜成纜及包帶用。
Application:
Suitable for twisting wrapping control cable, such as the computer cable,rubber sleeve cable,KVVRP,KVVR,RVV,KVV, If used with back twisting machine, it is suitable for cabling wrapping all kinds of date cable.
特點：
結構緊湊，造型美觀，轉速高，振動小，噪音低，適用性強，是目前電工機械行業單絞機系列規格大的產品，已申請中華人民共和國結構新型zhuanli。
Features:
Compact structure, beautiful appearance, high rotate speed, small vibration, low noise, wide applicability, it is the biggest product in the electrical machinery industry of the single twisting machine specification, it has been applied for patent of People's Republic of China.
機器型號 Machine type | ZMH-630mm | ZMH-800mm | ZMH-1000mm | ZMH-1250mm |
供線軸尺寸 Pay off bobbin size | Φ400mm-Φ500mm | Φ400mm-Φ500mm-Φ650mm | Φ500mm-Φ630mm | Φ500mm-Φ630mm |
收線軸尺寸 Take up bobbin size | Φ630mm | Φ800mm | Φ1000mm | Φ1250mm |
適用線徑 Suitable for the wire diameter | Φ0.6mm-Φ3.0mm | Φ0.6mm-Φ4mm | Φ0.6mm-Φ5mm | Φ0.8mm-Φ6mm |
絞合外徑 Max twist outer | Φ12mm | Φ15mm | Φ20mm | Φ30mm |
回轉速 Rotate speed | 650rpm | 550rpm | 400rpm | 350rpm |
收線張力 Take up tension | 氣動張力自由調節 Pneumatic tension can be adjustable freely | 氣動張力自由調節 Pneumatic tension can be adjustable freely | 氣動張力自由調節 Pneumatic tension can be adjustable freely | 氣動張力自由調節 Pneumatic tension can be adjustable freely |

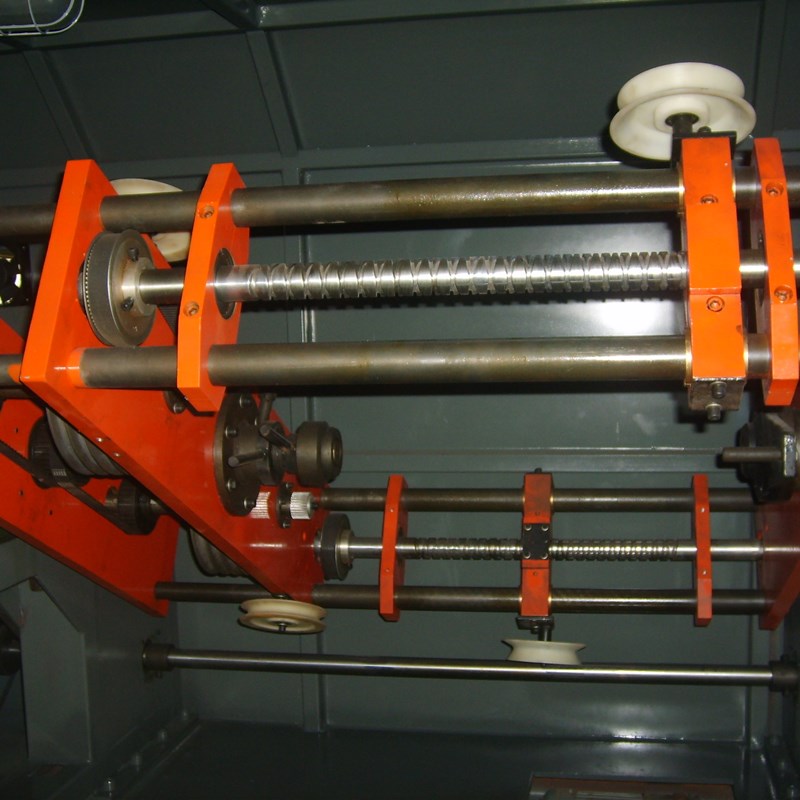

排線方式 Traverse type | 絲桿往復運動 Screw reciprocating motion | 絲桿往復運動 Screw reciprocating motion | 絲桿往復運動 Screw reciprocating motion | 絲桿往復運動 Screw reciprocating motion |
絞線方向 Twist direction | “S” “Z”向可自由選擇 Left right can be selected freely | “S” “Z”向可自由選擇 Left right can be selected freely | “S” “Z”向可自由選擇 Left right can be selected freely | “S” “Z”向可自由選擇 Left right can be selected freely |
絞距 Twist pitch | 20mm-200mm | 30mm-300mm | 30mm-350mm | 50mm-550mm |
包袋裝置 Taping device | 中心繞包或側包 Centre tapping side packing | 中心繞包或側包 Centre tapping side packing | 中心繞包或側包 Centre tapping side packing | 中心繞包或側包 Centre tapping side packing |
S、Z向可自由選擇 Left right can be selected freely | S、Z向可自由選擇 Left right can be selected freely | S、Z向可自由選擇 Left right can be selected freely | S、Z向可自由選擇 Left right can be selected freely | |
適用、銅帶、聚脂代、透明帶、云母帶、鋁箔、無紡布等 Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc | 適用、銅帶、聚脂代、透明帶、云母帶、鋁箔、無紡布等 Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc | 適用、銅帶、聚脂代、透明帶、云母帶、鋁箔、無紡布等 Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc | 適用、銅帶、聚脂代、透明帶、云母帶、鋁箔、無紡布等 Applicablematerial:copper belt, polyester belt, transparent tape, mica tape, aluminum foil, non-woven fabrics, etc | |
盤徑：Φ400mm 孔徑Φ50mm 寬度Φ8-30mm Bobbin size:Φ400mm Hole size:Φ50mm Width:Φ8-30mm | 盤徑：Φ450mm 孔徑Φ50mm 寬度Φ8-30mm Bobbin size:Φ450mm Hole size:Φ50mm Width:Φ8-30mm | 盤徑：Φ500mm 孔徑Φ50mm 寬度Φ8-30mm Bobbin size:Φ500mm Hole size:Φ50mm Width:Φ8-30mm | 盤徑：Φ500mm Bobbin Bobbin size:Φ500mm | |
整機重量 Machine weight | 2.5T | 3.5T | 4.5T | 6T |
